Suitable for transportation (medium and heavy-duty trucks, large and medium- sized buses), construction machinery, ships, and stationary power generation stations.
Highly integrated system utilizing self-developed hydrogen supply modules and FCU integrated controllers. Customized control strategy development for specific operating conditions in port and stationary applications.
High power density, high efficiency, quick start-up and response, convenient installation and maintenance, strong reliability. Adheres to a consistent design concept, with a domestic parts usage rate exceeding 98%.
Subject | Parameters |
|---|---|
Dimensions (LWH) (mm) | 932 ×763×990 (mm) |
Weight (kg)
| 239 |
Output Voltage Range (VDC) | 400~750 |
Single Electrolysis Module | 150.7 |
Mass-specific Power Density (W/kg)
| 630 |
Lifetime (hours)
| ≥20000 |
Protection Level
| IP67 |
System Maximum Efficiency (%)
| 61 |
Operating Temperature (℃)
| -30~65 |
Cold Start Temperature (℃)
| ≤-30 |
Operating Environment Humidity
| 5~95%RH |
Storage Temperature (℃)
| -40~65 |
Suitable for transportation (medium and heavy-duty trucks, large and medium-sized buses), construction machinery, ships, and stationary power generation stations.
Highly integrated system utilizing self-developed hydrogen supply modules and FCU integrated controllers. Customized control strategy development for specific operating conditions in port and stationary applications.
High power density, high efficiency, quick start-up and response, convenient installation and maintenance, strong reliability. Adheres to a consistent design concept, with a domestic parts usage rate exceeding 98%.
Subject | Parameters |
|---|---|
Dimensions (LWH) (mm) | 965 ×709×728 (mm) |
Weight (kg)
| 204 |
Output Voltage Range (VDC) | 400~750 |
Single Electrolysis Module | 120.7 |
Mass-specific Power Density (W/kg)
| 590 |
Lifetime (hours)
| ≥20000 |
Protection Level
| IP67 |
System Maximum Efficiency (%)
| 62 |
Operating Temperature (℃)
| -30~65 |
Cold Start Temperature (℃)
| ≤-30 |
Operating Environment Humidity
| 5~95%RH |
Storage Temperature (℃)
| -40~65 |

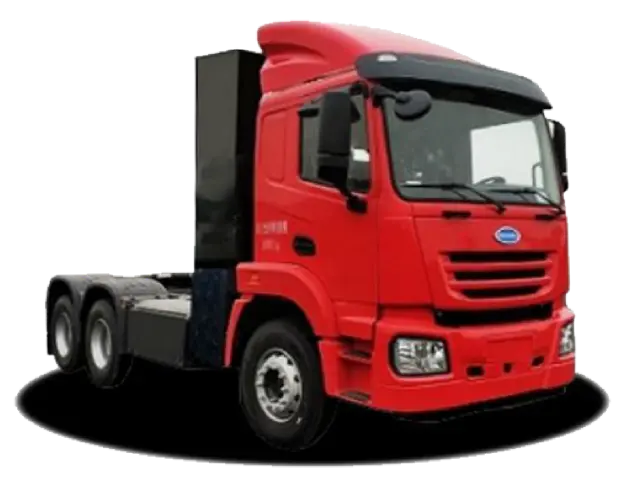

Subject | Parameters |
|---|---|
Model
| NJL4250ZEKFCEV |
Dimensions (LWH) (mm)
| 7470x2550x3700 |
Curb Weight (kg)
| 10100 |
Gross Weight (kg)
| 25000 |
Gross Trailer Weight (kg)
| 38770 |
Maximum Speed (km/h)
| 85 |
Range (km)
| 350 (fully loaded) |
Hydrogen Fuel Cell Engine Power
| 110.5 |
Subject | Parameters |
|---|---|
Model
| DFD4180GLFCEV1 |
Dimensions (LWH) (mm)
| 7110x2550x2820 |
Curb Weight (kg)
| 8100 |
Gross Weight (kg)
| 18000 |
Gross Trailer Weight (kg)
| 33950 |
Maximum Speed (km/h)
| 85 |
Range (km)
| 280 (fully loaded)
|
Hydrogen Fuel Cell Engine Power
| 120.7
|
